Adam Tech Connectors Available on Sourcengine: Product Portfolio Summary

Adam Tech is a premier manufacturer of connectors, cable assemblies, and custom interconnect solutions. One might wonder why choose Adam Tech’s products over the competition? The answer is simple – the scope of product offering.

Their connectors feature innovative designs that reduce cost and improve performance in a variety of applications. Adam Tech’s interconnect products are most commonly found in automotive, medical, lighting, wireless, telecom, harsh environment and waterproof, industrial and rugged, testing and measurement, climate control,home automation, outdoor monitoring and security, computers and computer peripherals, meters, instrumentation, appliances, media and entertainment industries.

Below, we will summarize Adam Tech’s portfolio of products that are easily accessible for purchase on Sourcengine.

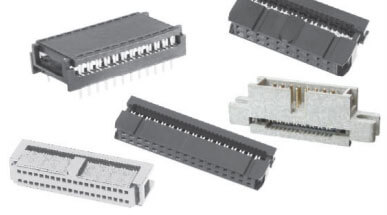

IDC CONNECTORS

•          1.27,2.00,2.54mm Pitches

•          8P-100P

•          Dual Row Sockets,PCB Plugs

•          Cardedge, D-Subminiatures

Popular part numbers: FCS-26-SG, FCS-24-SG

AdamTech IDC connectors

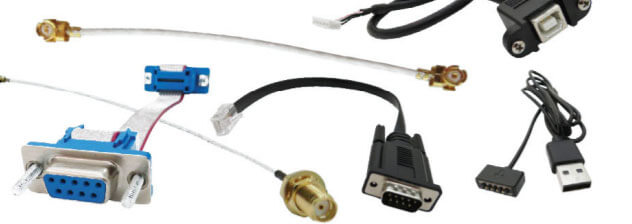

CUSTOM CABLE ASSEMBLIES

•          100% tested &guaranteed to customer requirements

•          UL listed

•          Many custom variations of industry-standard assemblies available

AdamTech custom cable assemblies

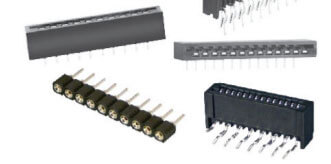

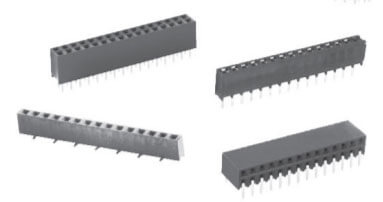

RECEPTACLE STRIPS

•          Many Pitches including:

•          0.8 , 1.0,1.27,2.0,2.54,3.96mm

•          Straight,Right Angle

•          Thru-hole& SMT

Popular part numbers: 2RS2-10-G

AdamTech receptacle strips

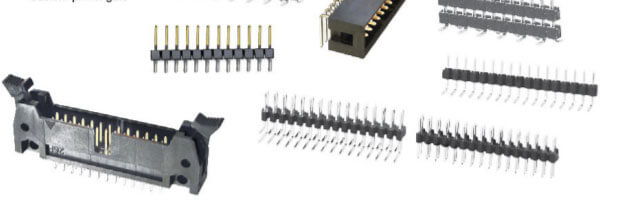

PIN HEADERS & SHROUDED HEADERS

•          Many Pitches including: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96mm

•          Straight,Right Angle

•          Thru-hole& SMT

•          Custom pin lengths

AdamTech pin headers & shrouded headers

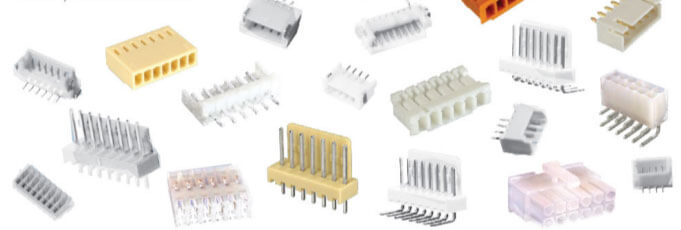

HEADER & HOUSING SYSTEMS

•          0.8, 1.0,1.25, 1.5,2.0,2.5& 2.54mm Pitches

•          Straight,Right Angle and SMT styles

•          Sure fit,Fine Pitched & Polarized

AdamTech header & housing systems

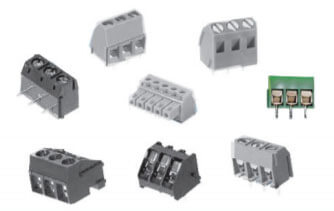

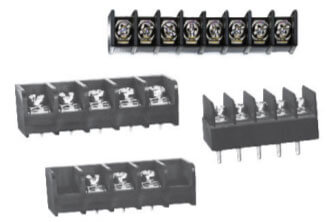

TERMINAL BLOCKS

•          Wide range of sizes and profiles

•          Choice of multiple terminations

•          02-30 positions

AdamTech terminal blocks

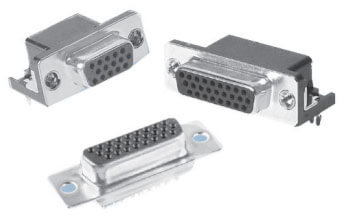

HIGH DENSITY D-SUBS

•          Positions:15, 26, 44, 62, 78

•          High Density pin count in standard size shell

•          Straight,Right Angle, Solder Cup, Crimp/Poke variations

AdamTech high density d-subs

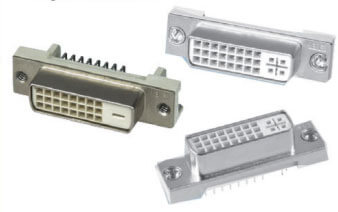

DVI CONNECTOR

•          Digital &Analog versions

•          Straight and Right Angle PCB mount

•          High Speed performance and low cost

•          Single or Dual Stacked

AdamTech dvi connector

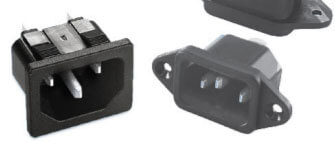

AC INLET & OUTLET POWER CONNECTORS

•          Solder, Quick connect or PCB pin mount

•          Inlet &Outlets with Power Line Filters

•          Snap in or Screw in Flange Mount

•           Fuse & Fuse with Switch versions

•           IEC & Mini-IEC types

•          IEC-60320, CEE-22 Compliant

AdamTech ac inlet & outlet power connectors

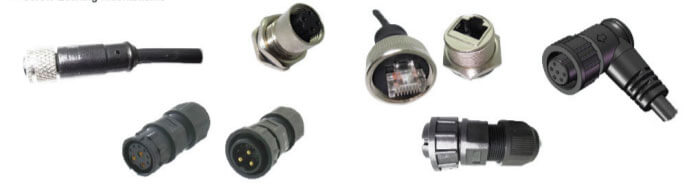

WATERPROOF CONNECTORS

•           Panel Mount, Overmold w/ Cable, Field Assembly Types

•           Complete Pin Count Selection

•           IP Sealing Options include IP66, IP67, IP68

•           Straight and Right Angle

•           Screw Locking Mechanisms

AdamTech waterproof connectors

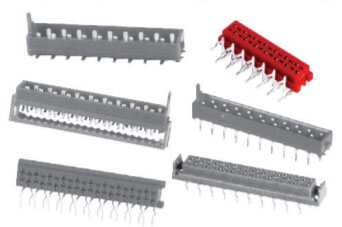

MINI FLEX CONNECTOR

•         1.27(.0S0") Pitch

•         Cable-PCB, Wire-PCB, PCB-PCB Styles

•         Superior design with Location Pegs& Friction Lock Mating

AdamTech mini flex connector

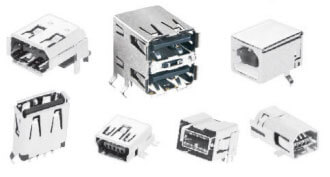

USB, MINI-USB, MICRO USB & FIREWIRE, MINI-FIREWIRE

•         USB 2.0 & 3.0 Standard, Mini & Micro versions

•         Types A, AB, AB1, B, B4 & BS

•         Firewire & Mini Firewire styles

•         Thru-hole, SMT, Stacked versions

Popular part numbers: USB-A-D-RA, USB-B-S-RA

AdamTech usb, mini-usb, micro usb

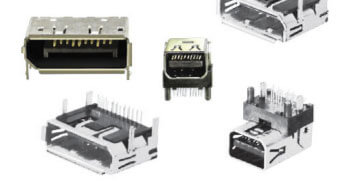

DISPLAY PORT & MINI-DISPLAY PORT

•         High band width digital interface

•         Small package, shielded design

•         Supports color depth 6,8, 10, 12, 16 bits per color components

Popular part numbers: MDPC-S-RA

AdamTech Display port & mini-display port

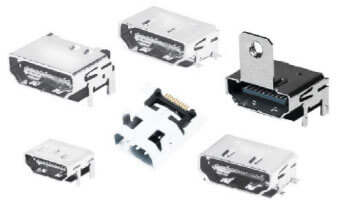

HDMI & MINI HDMI SERIES

•         Standard or Mini types, Sturdy, Fully Shielded

•         Eliminates multiple connectors and cables

•         Up to 5Gbpsin single interface.

•         Thru-hole or SMT mount, Flange mounting option

AdamTech hdmi & mini hdmi series

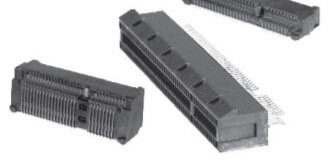

PCI EXPRESS, MINI PCI EXPRESS, MINI PCI, VESA & EISA

•         2.54, 1.27, 1.0 & 0.8mm Pitch

•         Standard and Hi density versions

•         x1, x4, x8 & x16 Lane configurations

•         Coexists with Standard PCI

•         Hot Plug & Hot Swap Enabled

AdamTech pci express, mini pci express

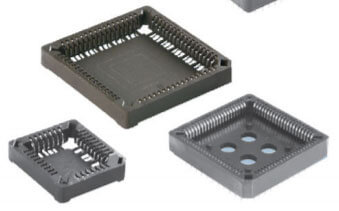

PLCC SOCKETS

•         Full range 20p-100p

•         Precision Stamped contacts

•         Thru-hole and SMT types

•         Standard and Hi-Temp versions

Popular part numbers: PLCC-32-AT-SMT-T/R, PLCC-84-AT, PLCC-44-AT

AdamTech plcc sockets

EURO BLOCKS

•         Multiple sizes and profiles

•         Top, Side and Angled entry

•         Two piece pluggable versions

•         3.5, 3.81, 5.0, 5.08, 7.0, 7.62, 10.0,10.16, 15.0mm Pitches

AdamTech euro blocks

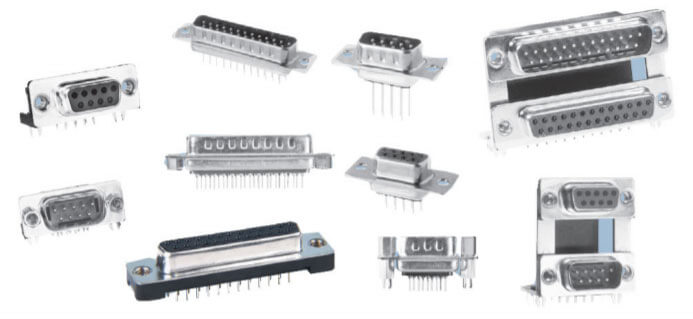

D-SUB MINIATURE RIGHT ANGLE, STRAIGHT, DUAL PORT PCB MOUNT

•         Positions: 9, 15, 25, 37, 50

•         Compatible with all industry-standard D-Subs

•         .318" (8.08) & .590"(15.00) footprints

•        Wide assortment of mounting options

AdamTech d-sub miniature right angle

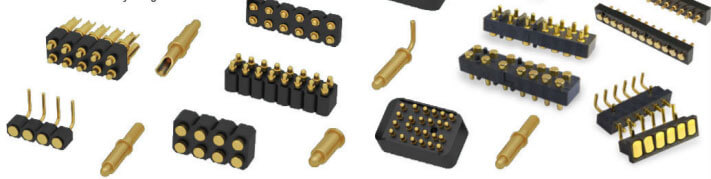

SPRING LOADED CONNECTORS

•         High Reliability

•         Corrects connection between uneven surfaces

•         Satisfies high vibration connection requirements

•         Increased durability for heavy duty applications

•         Highly Customizable

•        Low Cost and Easily Integrated

AdamTech spring loaded connectors

D-SUBMINIATURE IDC- FLAT CABLE CONNECTOR

•         Positions: 9, 15, 25, 37, 50

•         Compatible with all industry standard D-Subs

•         Quickly terminates to 1.27 Flat Cable

AdamTech d-subminiature idc-flat cable connectors

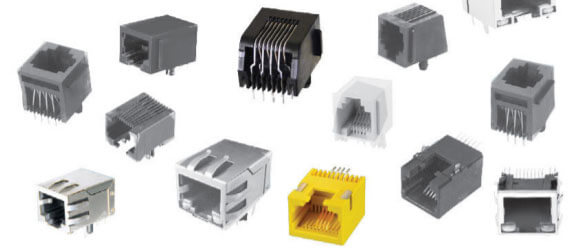

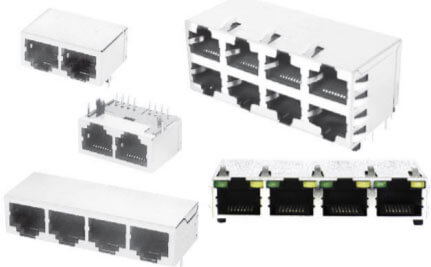

MODULAR JACKS

•         4, 6, 8 & 10 Positions, Thru-hole, SMT, Right Angle, Vertical, Shielded, LEDs, Ganged, Stacked, Integrated Magnetics

AdamTech modular jacks

MODULAR JACKS WITH INTEGRATED MAGNETICS & LEDS

•        Single, stacked & ganged configurations

•        Choice of transformer styles

•        Panel grounds & LED options

•        Combination Mod Jack & Dual USB with Integrated Magnetics

AdamTech modular jacks with integrated magnetics

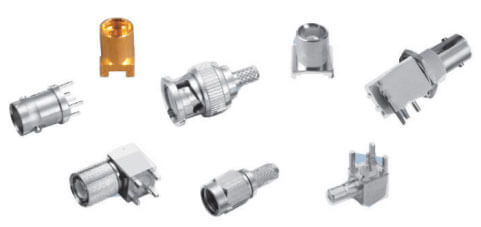

RF CONNECTORS

•       Wide selection of cable, panel mount& PCB connectors

•       BNC, TNC, FMA, FME, SMA, SMB, N, F PAL, Mini-UHF, MCX, MMCX, W.FL & 1.6/5.6

AdamTech rf connectors

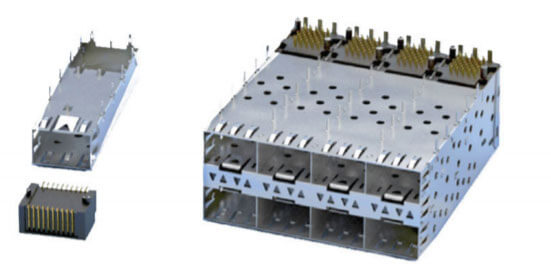

SMALL FORM FACTOR

•       Industry Standard Compatibility

•       Interfaces with both fiber optic and copper networking modules

•       Single, Stacked or Ganged Cages

AdamTech small form factor

FLEX CIRCUIT CONNECTOR -LIF TYPE

•       0.3, 0.5, 0.8, 1.0 & 1.25mm Pitches

•       LIF and ZIF types

•       Precision Stamped High Pressure contacts

•       Thru-hole or SMT versions

•       03-30 Positions

AdamTech flex circuit connector

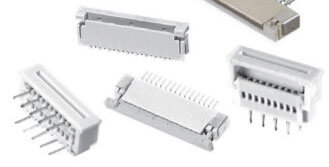

FLEX CIRCUIT CONNECTOR -ZIF TYPE

•       0.3, 0.5, 0.8, 1.0 & 1.25mm Pitches

•       LIF and ZIF types

•       Precision Stamped High Pressure contacts

•      Thru-hole or SMT versions

•      03-30 Positions

AdamTech flex circuit connector zif type

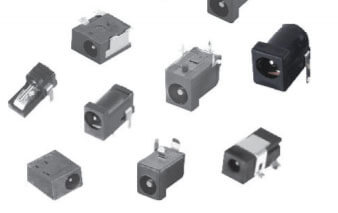

DC POWER JACKS

•       Miniature & Sub-Miniature.

•       PCB and panel mounting versions

•       Wide range of center pin sizes

•      Thru-hole or SMT mounting

AdamTech dc power jacks

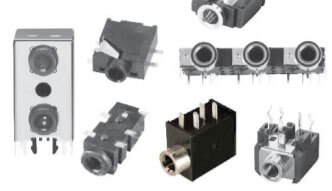

AUDIO JACKS

•       Miniature & Sub-Miniature styles

•       Broad range of switching configurations

•       Ganged and Stacked versions

•       PCB or panel mounting types

•       Thru-hole or SMT mounting

AdamTech audio jacks

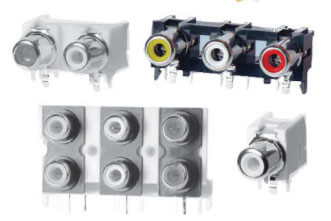

RCA JACKS

•       Wide range of body styles

•       Ganged and Stacked versions

•       Industry Standard compatibility

AdamTech rca jacks

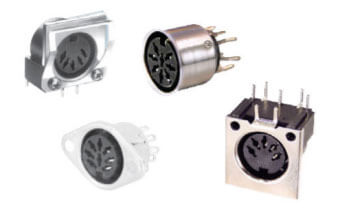

DIN JACKS

•       Wide range of styles

•       3-13 positions

•       Shielded or Unshielded

•       PCB mount and Panel mount versions

AdamTech din jacks

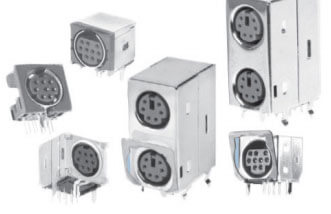

MINI DIN JACKS

•       Wide range of styles

•       3-13 positions

•       Shielded or Unshielded

•      PCB mount and Panel mount versions

AdamTech mini din jacks

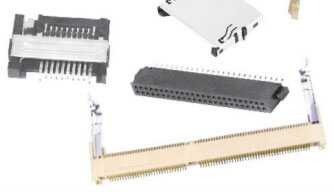

MEMORY CONNECTORS

•      Memory Sticks

•      Smart Media

•      Compact Flash

•      Secure Digital

•      PCMCIA

AdamTech memory connectors

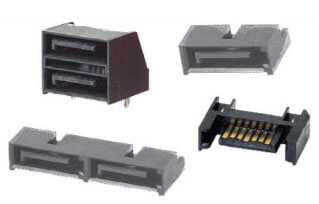

SATA SERIES

•       Meets SCA Interconnection Standard

•       Hot Plug capability with power and signal contacts

•       Single and top/bottom or side/side ports

•       Shielded, Open Frame, Thru-hole & SMT styles

AdamTech sata series

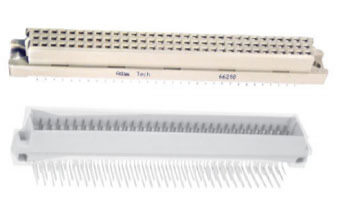

DIN 41612

•       Industry standard compatible

•       Multiple body sizes and types

•       16-96 positions

•       2, 3 & 4 Row styles

AdamTech din 41612

IC SOCKETS

•       High Pressure contact system

•       7.62 (3.00”) or 15.24 (.600”) Centerline Footprint

•       06P-48P Positions

•       Anti-Solder Wicking, Machine insertable

Popular part numbers: ICM-628-1-GT, ICM-624-1-GT, ICM-632-1-GT, ICS-316-T, ICS-628-T

AdamTech ic sockets

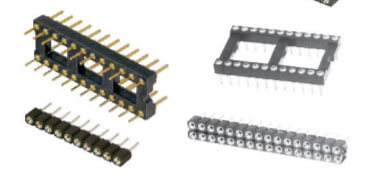

SCREW MACHINE SOCKETS & TERMINAL STRIPS

•       1.0, 1.27, 2.0 & 2.54mm Pitches

•       High Pressure Contacts

•       Single or Dual Row

•      Straight, Right Angle and SMT mounting

AdamTech screw machine sockets
