Trinamic TMCM-0013-xA

A Trinamic pcb with a car in the background; learn more about this component and its current use in electric motors here at Sourcengine.

The TMCM-0013-xA boards are tools to simplify measurement and visualization of 2x motor phase currents of small electric motors such as stepper motors, BLDC motors, or DC motors without the need for an expensive current probe.They are easy to use and can be connected to typical laboratory oscilloscopes.

·      Supplied via USB or dedicated laboratory power supply with +7... +35V.

·      Comes in 3 different current measurement ranges(nominal range).

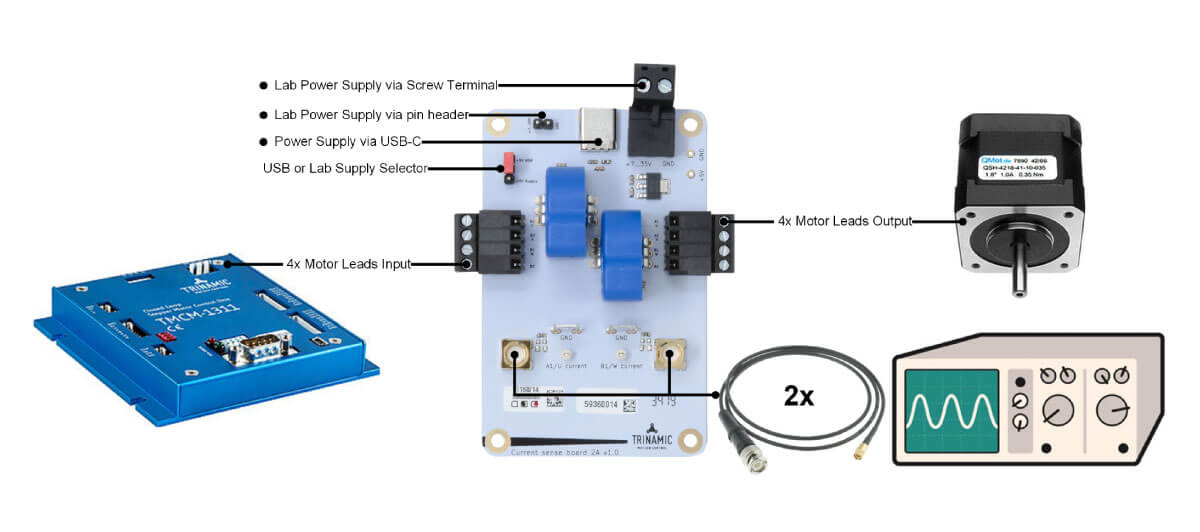

·      Connects to a scope via CMA-2-BNC cables or standard clamps.

·      Easy to handle screw terminals and USB-C.

·      Uses galvanically isolated current transducers LEM LTS 6-NP

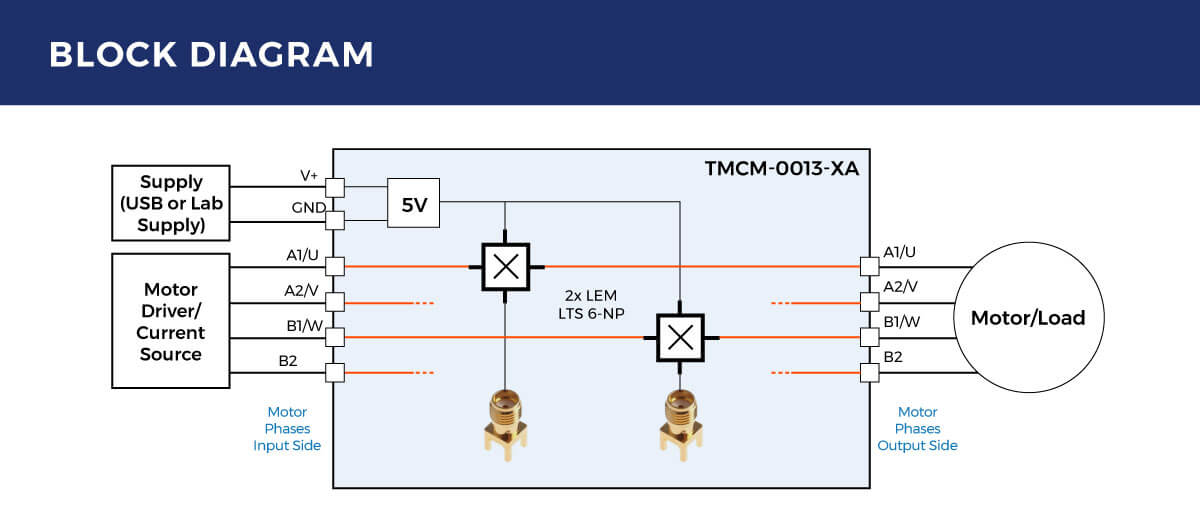

Block Diagram

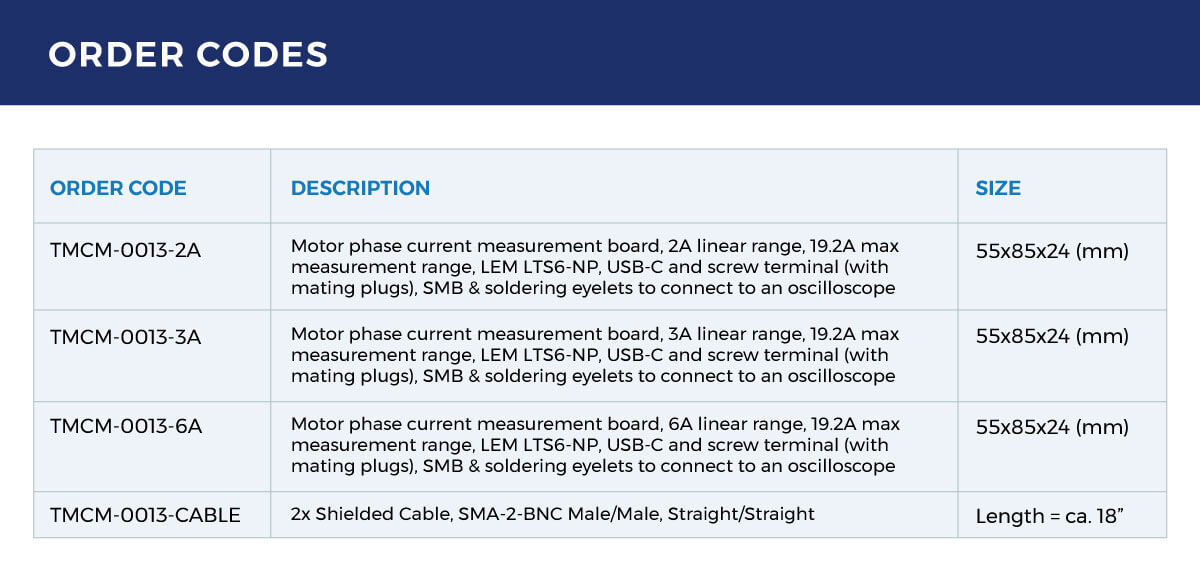

Order Codes
Order Codes



Sourcengine, the world’s leading marketplace for electronic components, offersTrinamic products. Click here to shop for the TMCM series.
