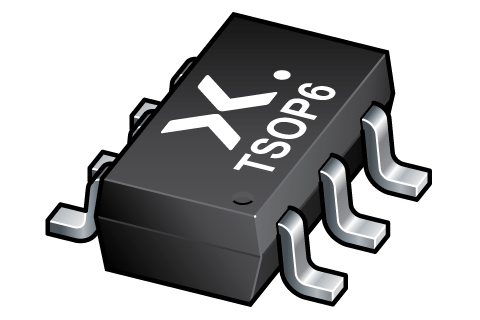

PIMN31F
Nexperia BV
- Lifecycle statusActive
- RoHSRoHS compliant
- REACHREACH compliant
- Description500 mA, 50 V NPN/NPN double resistor-equipped transistor; R1 = 1 kOhm, R2 = 10 kOhm
- Category
- ECCNEAR99
- ECCN GovernanceEAR
- ApplicationSWITCHING
- JESD-30 CodeR-PDSO-G6
- ConfigurationSEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
- Package ShapeRECTANGULAR
- Package StyleSMALL OUTLINE Meter
- Surface MountYES
- Terminal FormGULL WING
- J-STD-609 Codee3
- Terminal FinishTIN
- Terminal PositionDUAL
- Number of Elements2
- Number of Terminals6
- Package Body MaterialPLASTIC/EPOXY
- Polarity/Channel TypeNPN
- DC Current Gain-Min (hFE)70
- Moisture Sensitivity Level1
- Transistor Element MaterialSILICON
- Peak Reflow Temperature (Cel)260
- Collector Current-Max (IC) (A)0.5
- Collector-emitter Voltage-Max (V)50
- Time@Peak Reflow Temperature-Max (s)30
